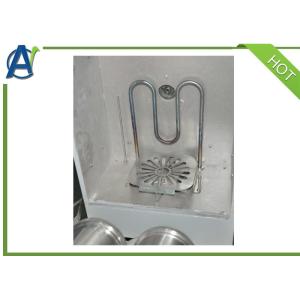

ASTM D1831 Roll Stability Tester For Lubricating Grease Analysis

Ask Lasest Price
Brand Name :	AI
Model Number :	AIC-1831
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 sets per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

ASTM D1831 Roll Stability Tester For Lubricating Grease Analysis

Introduction

Using a certain amount of sample, at room temperature, after working on a roller testing machine for 2 hours, determine the working penetration of the grease before and after the test.This Roll Stability Tester is suitable for measuring the consistency change of the grease after working on the roller testing machine to judge the mechanical shear stability of the grease.

I. Main Features

◆ Stainless steel roller: Φ90×180mm 5kg;

◆ The idler wheel has a positioning ring to control the normal operation of the roller;

◆ A drive motor is installed below to keep the speed at 155～180r/min;

◆ Belt drive roller;

◆ Microcomputer thermostat, digital display, accuracy ±5℃ PT100 sensor;

◆ Digital timer, recording working time, with wind alarm;

◆ Two rollers can be tested at the same time;

◆ There is a thermometer hole on the cover of the instrument box for temperature correction.

II. Technical Specifications

1	Applicable standards	ASTM D1831,SH/T0122
2	Heating mode	Electric ring
3	Timing mode	Digital timer
4	Temperature controlling range	21℃~38℃
5	Motor speed	155~180RPM
6	Working units	2 units
7	Power supply	AC 220V ,50Hz
8	Total power	1000W

ASTM D1831 Roll Stability Tester For Lubricating Grease Analysis

III. Accessories List

No.	Name	Quantity
1	Roll Stability Testing Equipment	1 Set
2	Roller	2 Sets
3	Wrench	2 PCS
4	Thermometer (0~100℃)	1 PC
5	Fuse (20A)	4 PCS
6	Sample dish	15 PCS
7	Scraper	1 PC
8	Manual book	1 Copy
